Polycarbonate (PC) optical quality sheet and foil extrusion lines are indispensable in the production of high-quality thermoplastic materials used in various fields, including construction, industrial applications, and graphic arts. BG Plast designs its extrusion lines with state-of-the-art technologies to ensure optimal performance, especially in processing PC and other polymers such as PMMA, PET-G, GPPS, and SAN.
Let’s find out how these advanced solutions can meet the industry’s growing needs for precision, efficiency and versatility.

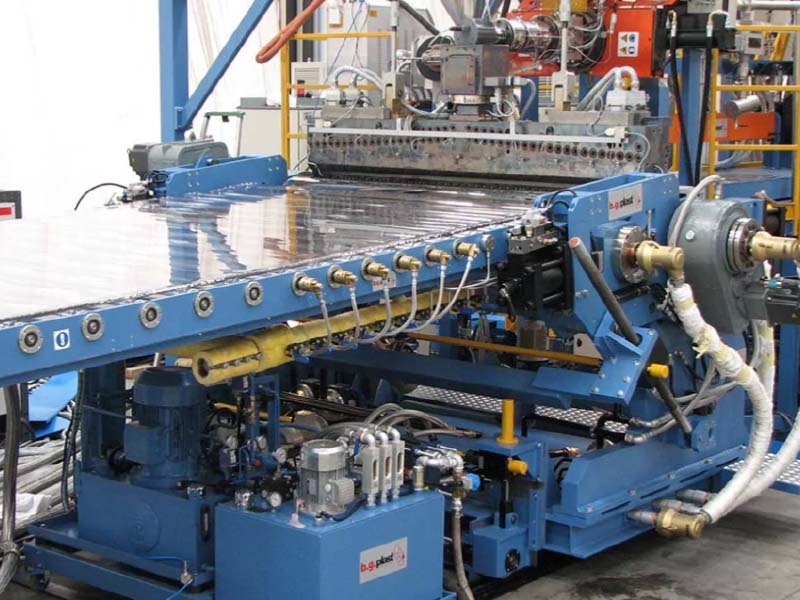

BG Plast’s optical quality sheet extrusion lines enable the processing of various materials such as PC, PMMA, PET-G, GPPS and SAN
High-quality polycarbonate sheets with advanced extrusion technology
A well-designed optical-quality PC sheet extrusion line ensures the production of high-end polycarbonate products known for their excellent optical properties, impact resistance and UV stability. BG Plast’s extrusion line is equipped with a bimetallic barrel and a coated screw, both of which are essential for efficient and consistent polymer processing. These components are designed to handle various thermoplastics, providing the flexibility for manufacturers to process polycarbonate along with other resins such as PMMA and PET-G. The result is high-quality, transparent sheets and foils that meet the rigorous standards of industries such as construction and lighting.
Increased efficiency with a reliable degassing system
Efficient degassing is critical in the extrusion process, particularly when producing polycarbonate sheets of high optical quality. Residual moisture or volatile gases within the material can cause imperfections, such as bubbles or streaks, which significantly reduce the optical brilliance of the final product. We have therefore paid special attention to the design of the degassing system so that it can effectively remove residual gases during the extrusion process. This results in sheets that are always smooth and free of optical distortion, for the highest quality result.
Precision dosing for consistent material flow
Consistency in the extrusion process is critical to achieving high optical quality. Our PC optical sheet extrusion line uses high-precision gravimetric dosing units that work in perfect synchrony with the gear pump and extruder screw. A synchronized feeding system ensures uniform material flow, avoiding irregularities such as thickness variations or surface imperfections. Manufacturing companies will be able to rely on the production of optical sheets with uniform properties across the entire product, minimizing waste and increasing production efficiency.
Superior calendering system for excellent optical quality
The calendering process plays a key role in the production of optical quality sheets. BG Plast’s PC sheet extrusion line is equipped with a three-cylinder calendering system designed with scrupulous attention to mechanical precision. The 410 mm cylinders boast a very high degree of finish and are equipped with an internal high-temperature pressurized water circulation system. This enables extremely precise temperature control, which is essential for achieving the desired sheet thickness and surface smoothness.
In addition, the variable geometry of the calender, enabled by the rotation of the upper cylinder around the central cylinder, provides greater flexibility in producing sheets of different thicknesses. This unique feature ensures that sheets, whether thin or thick, maintain their high optical quality.
Three-cylinder calendering is one of the strengths of BG Plast’s optical quality PC sheet extrusion lines
Vibration-free drive system for flawless production
In the production of optical-quality polycarbonate sheet, even the smallest vibration during the extrusion or calendering process can lead to surface imperfections. We have addressed this challenge by designing the drive mechanics, motors and gearboxes to ensure vibration-free rotation of the calendering cylinders. This keeps the sheets perfectly smooth and uniform, a prerequisite for making optical-quality products. The absence of vibration also extends the longevity of the machinery, reducing maintenance requirements and increasing productivity.
UV protection thanks to advanced coextrusion
One of the main features of BG Plast’s PC optical sheet extrusion line is the side extruder, which allows the application of a thin layer of UV protection during the production process. Polycarbonate can degrade when exposed to prolonged UV radiation, resulting in discoloration and reduced mechanical properties. By applying a UV protective layer directly during the extrusion process, on the other hand, our technology ensures that the finished sheets are suitable for outdoor applications such as roofing, skylights and protective barriers. The ability to apply UV protection to one or both sides of the sheet also gives manufacturers the flexibility to meet customers’ specific needs.
Flexible sizes for a wide range of applications
The versatility of the PC optical quality sheet extrusion line is further enhanced by its ability to produce sheets of various sizes and thicknesses. The standard width of BG Plast’s extrusion lines is 2300 mm, which allows finished product widths of up to 2000 mm. In terms of thickness, the system can produce foils as thin as 0.15 mm and sheets as thick as 25 mm. Endless possibilities that pave the way for numerous applications, from product finishing to robust impact-resistant sheets used in industrial and architectural settings.
Automated finishing for greater efficiency
Automation is a key factor in increasing the efficiency of the most advanced extrusion lines. Therefore, we integrate an automated finishing process that includes protective film application, cutting and stacking. The extruded sheet is first covered with a polyethylene film to protect it from scratches during handling. It is then cut into lengths of up to 3000 mm and stacked automatically with a suction cup system. This high level of automation reduces manual intervention, speeds up production and ensures that the final product is ready for immediate use or shipment with minimal downtime.
Multi-layer and embossed sheet production
In addition to producing single-layer sheets, BG Plast’s extrusion line offers the ability to create multilayer sheets, which are often used for specific applications that require greater functionality. For example, multilayer sheets with a coextruded UV layer can provide optical quality and long-term durability in outdoor environments. With our lines, it is also possible to produce embossed and corrugated sheets, which add aesthetic and functional value to the final product. These types of textured sheets are ideal for applications such as architectural glazing, industrial protection and soundproofing panels.

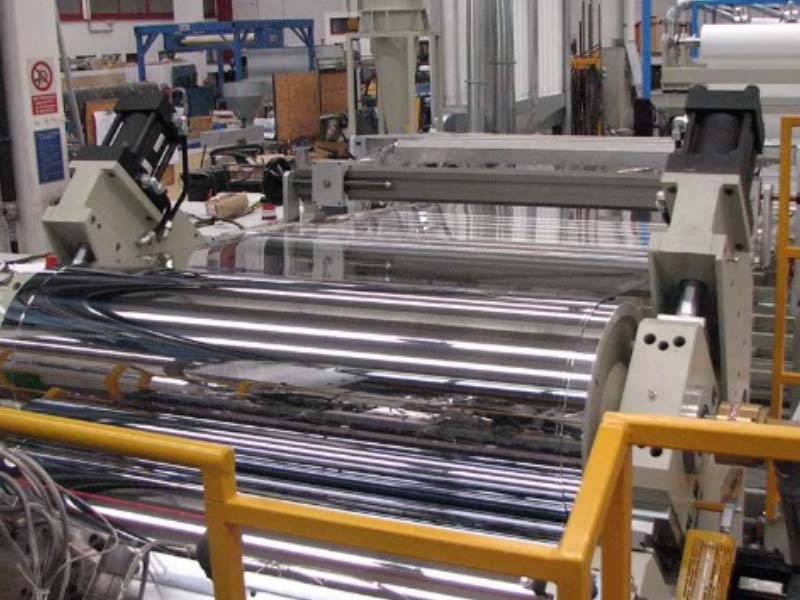

The versatility of the line allows for embossed and corrugated greca/wave type sheets in single or multilayer configuration
Environmental benefits and cost-effectiveness
Producing polycarbonate sheet with a technologically advanced extrusion line can also provide environmental benefits. BG Plast’s extrusion systems are in fact designed to optimize energy efficiency, reducing consumption during the production process. In addition, precise material dosing and minimized waste production result in lower overall material costs. Manufacturing companies can produce high-quality sheets while reducing environmental impact because our PC optical quality sheet extrusion line is a sustainable and cost-effective solution.
Meeting market needs with customizable solutions
The growing demand for high-quality polycarbonate sheet in sectors such as construction, lighting and graphics requires extrusion lines that can guarantee excellence and versatility. BG Plast’s PC optical sheet extrusion line is highly customizable, allowing manufacturers to tailor the system to their specific production needs. To produce single-layer or multi-layer sheets, thin foils or thicker sheets, the line offers the flexibility to meet ever-changing market demands. This adaptability provides manufacturers with competitiveness and the ability to produce innovative, high-performance products.
The future of PC optical sheet extrusion
BG Plast’s PC optical quality sheet extrusion line is the pinnacle of innovation and precision in thermoplastic processing. By combining advanced technologies, such as a high-precision calendering system, efficient degassing and automated finishing, with the flexibility to produce a wide range of sheet sizes and thicknesses, we offer manufacturers an irreplaceable tool for producing high-quality polycarbonate sheets.
Choosing BG Plast means opting for state-of-the-art technology, efficiency and customization: contact us for more information.
